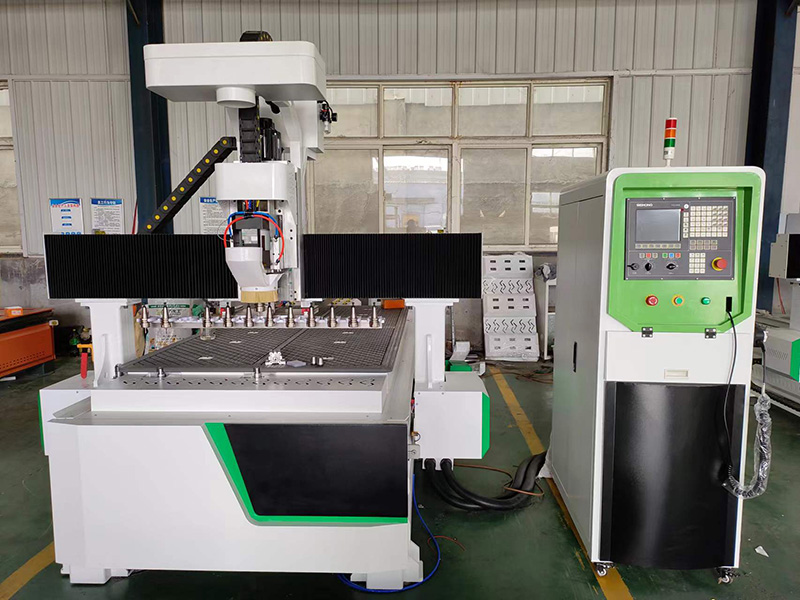

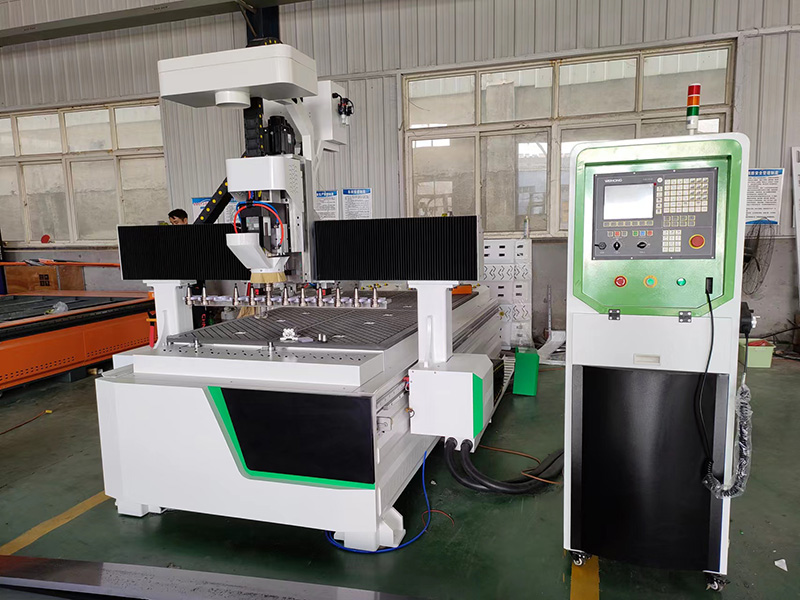

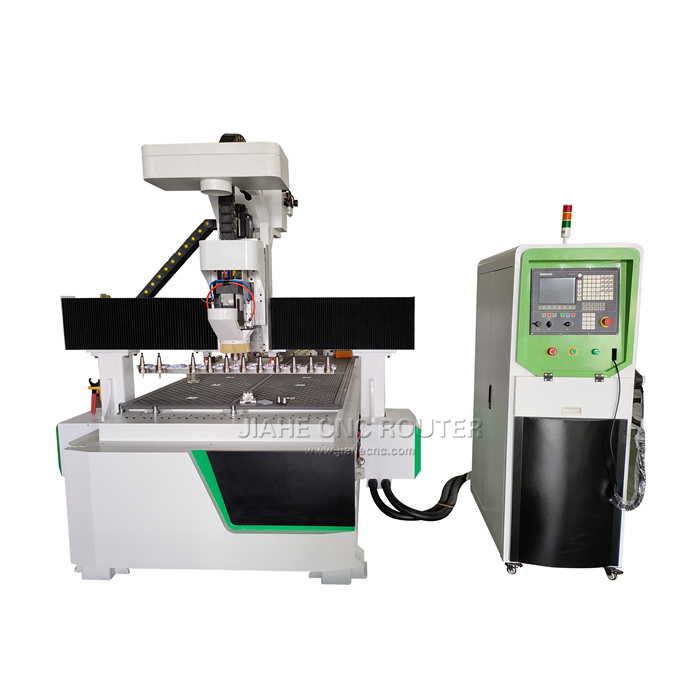

ATC Wood CNC Machine
ATC Wood CNC Machine
Model: JK-1325
Usage: Woodworking for doors, furniture, cabinet, engraving and cutting
Transportation: LCL or FCL by sea from Qingdao port
Service: 7×24 hours technical support
ATC wood CNC machine is for Doors, Furniture, Cabinet adopts Leadshine servo motors 1.5kw and servo drivers, 9kw ATC air cooled spindle, Taiwan LNC control system, Taiwan PMI square linear rails for XYZ axis.
Specification of ATC wood CNC machine:
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x250mm |
2 | Table Size | 1350*2600mm |
3 | X,Y,Z Traveling Accurate | ±0.03/300mm |
4 | Table type | Vacuum table(6 zone) |
5 | Lathe Structure | Thick steel Welded construction |
6 | Guide rails | Taiwan PMI square guide rails for x y z axis |
7 | X, Y Structure | Taiwan rack and pinion transmission |
8 | Z Structure | Taiwan TBI ball screw transmission |
9 | Spindle motor | 9KW air cooled spindle with linear tool changer |
10 | Max.Speed | 0-30000mm/min |
11 | Max. Working Speed | 0-25000mm/min |
12 | Frequency Inverter | Taiwan Delta inverter |
13 | Spindle Speed | 18000-24000RPM |
14 | Motor | Leadshine Servo motors 1.5kw |
15 | Driver | Leadshine servo drivers |
16 | Working Voltage | 380V three phase |
17 | Command | G Code, *uoo, *mmg, *plt |
18 | Operating System | Taiwan LNC control system MW2200 |
19 | Tool changer | 12pcs changing tools |
20 | Lubrication system | Self lubrication system |
21 | Tool sensor | Z axis tool sensor |
22 | Limit switches | Limit switches at all ends of X and Y table |
23 | Vacuum pump | 7.5kw |
24 | Dust collector | New style dust collector |
25 | Packing Size | 3200*2280*2100mm |
26 | Net Weight | 1300KG |
27 | Gross Weight | 1500KG |

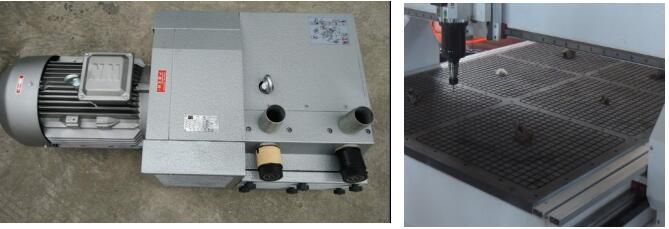

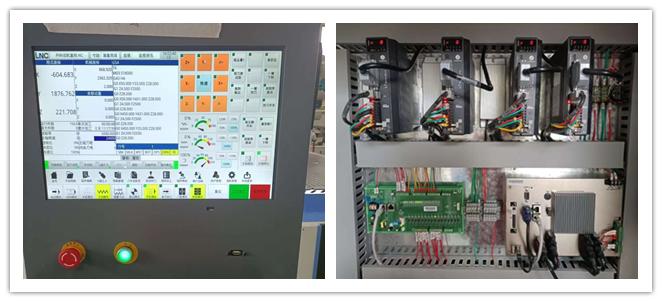

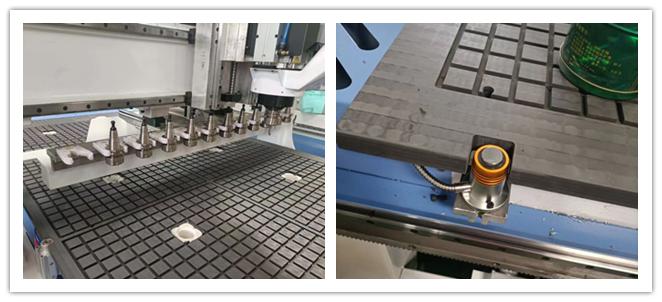

Parts show of ATC wood CNC machine:
Package of ATC wood CNC machine:
Our service
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
After sale:
We would provide English Version working manual.
If you have any questions during using and maintaining,our engineers would answer you online or by calls.

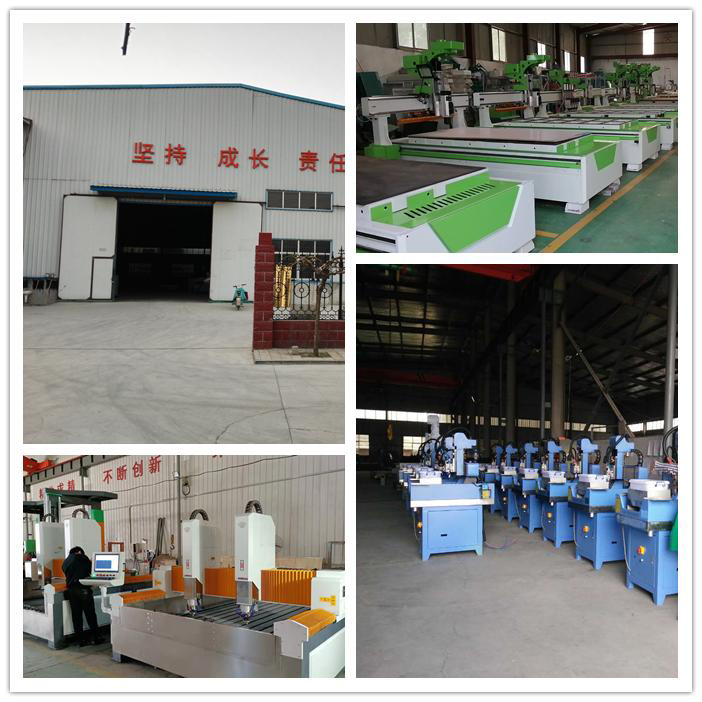

Our company
