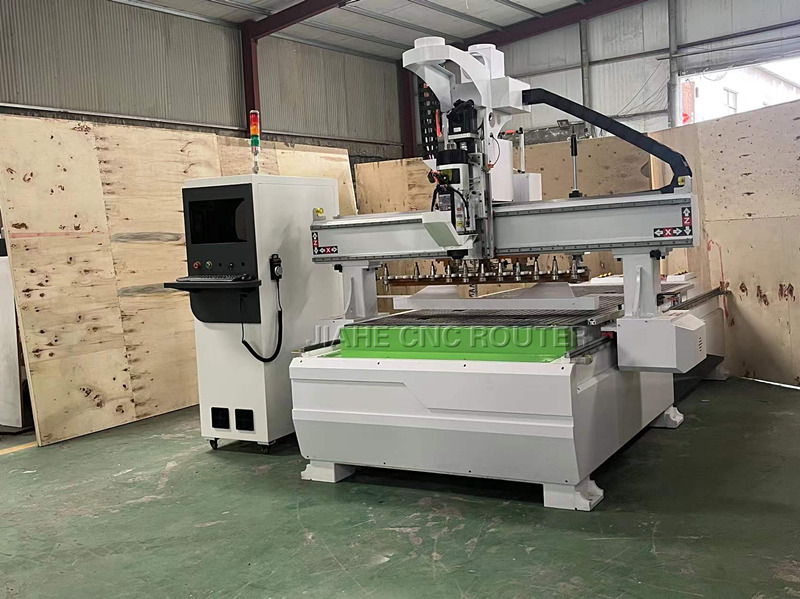

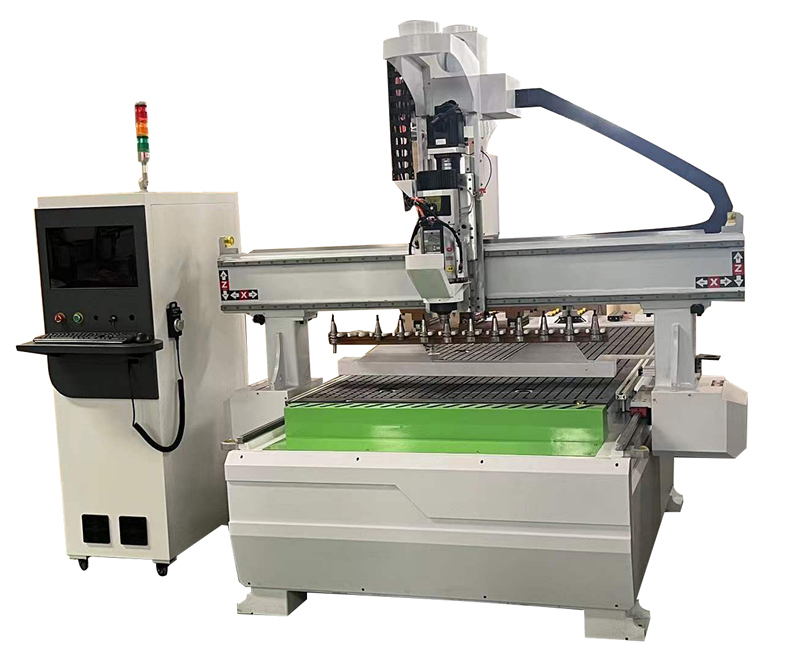

1325 ATC CNC Router
1325 ATC CNC Router is a high-performance machine with excellent carving accuracy, speed, and efficiency. With its automatic tool changer system, the machine can complete tool changes quickly and accurately, saving time and labor costs.
Model: JK-1325(8ft×4ft)
Working size: 1.3m×2.5m(8ft×4ft)
Spindle: 9kw ATC
Motor: servo
1325 ATC CNC Router is an ideal and efficient machine for carving various materials such as acrylic, MDF, PVC, crystal, glass, aluminum, brass, and other non-metallic materials. It is equipped with a high-speed spindle motor that has a cooling system to prevent overheating, ensuring precise carving results. Moreover, it is also fitted with an automatic tool changer system that allows the device to switch tools quickly and accurately, saving time and energy.
Performance Characteristics of 1325 ATC CNC Router:
1. The spindle motor is equipped with a high-speed water-cooling system to ensure stable performance during continuous operation.
2. The automatic tool changer system can complete tool changes in just a few seconds, improving working efficiency greatly.
3. The machine body is constructed with a one-piece welded steel frame that ensures the rigidity of the device.
4. The Y-axis adopts a double drive system to ensure stable movement and accuracy during operation.
5. The machine uses servo motor and driver to ensure the high precision of carving jobs, reducing errors and waste materials.
Technical parameters of 1325 ATC CNC Router:
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x250mm |
2 | Table Size | 1350*2600mm |
3 | X,Y,Z Traveling Accurate | ±0.03/300mm |
4 | Table type | Vacuum table(6 zone) |
5 | Lathe Structure | Thick steel Welded construction |
6 | Guide rails | Taiwan PMI square guide rails for x y z axis |
7 | X, Y Structure | Taiwan rack and pinion transmission |
8 | Z Structure | Taiwan TBI ball screw transmission |
9 | Spindle motor | 9KW air cooled spindle with linear tool changer |
10 | Max.Speed | 0-30000mm/min |
11 | Max. Working Speed | 0-25000mm/min |
12 | Frequency Inverter | Taiwan Delta inverter |
13 | Spindle Speed | 18000-24000RPM |
14 | Motor | Leadshine Servo motors 1.5kw |
15 | Driver | Leadshine servo drivers |
16 | Working Voltage | 380V three phase |
17 | Command | G Code, *uoo, *mmg, *plt |

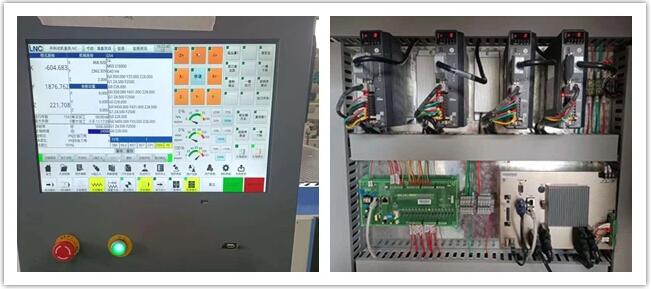

18 | Operating System | Taiwan LNC control system MW2200 |

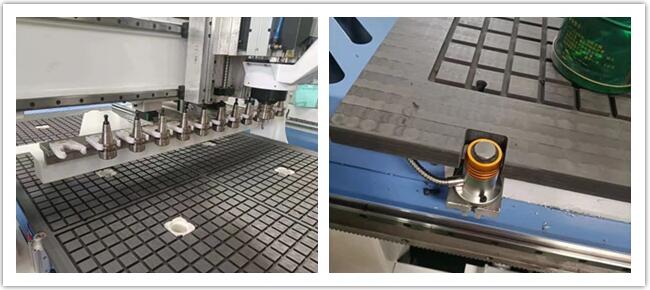

19 | Tool changer | 12pcs changing tools |
20 | Lubrication system | Self lubrication system |
21 | Tool sensor | Z axis tool sensor |
22 | Limit switches | Limit switches at all ends of X and Y table |

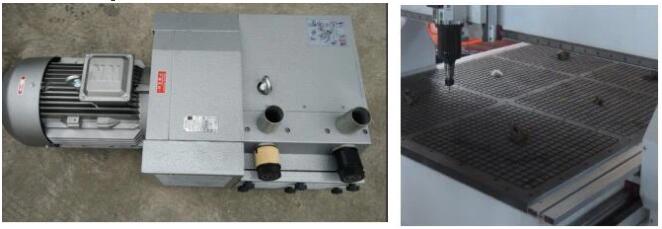

23 | Vacuum pump | 7.5kw |
24 | Dust collector | New style dust collector |
25 | Packing Size | 3200*2280*2100mm |
26 | Net Weight | 1300KG |
27 | Gross Weight | 1500KG |
Parts show of 1325 ATC CNC Router:
Application Scope:
1325 ATC CNC Router is widely used in various industries, such as advertising, woodworking, art, craft, mold, architectural decoration, furniture, and so on. It is an ideal device for engraving, cutting, drilling, and milling of non-metallic materials.
Materials and Industry Application of 1325 ATC CNC Router:
1. Wood industry: MDF, solid wood, and other wood materials.
2. Advertising industry: acrylic, double-color board, PVC, ABS board, aluminum, copper, etc.
3. Craft industry: crystal, glass, etc.
4. Mold industry: copper, aluminum, stainless steel, etc.
