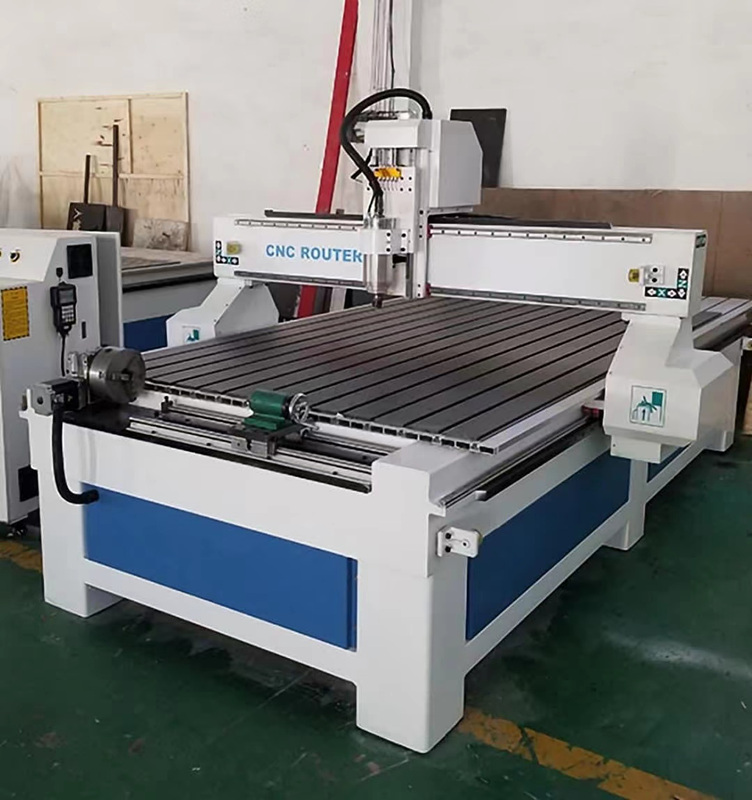

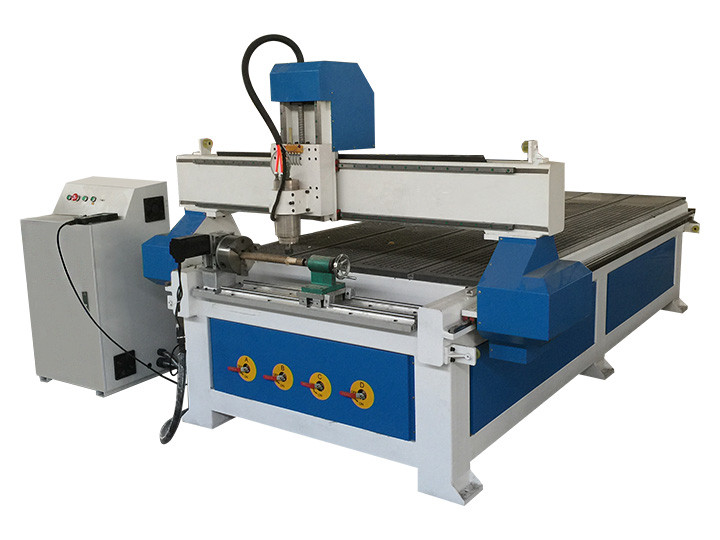

Wood Carving CNC Machine With Rotary Axis
Wood carving CNC machine can carve intricate designs and patterns on wood with remarkable accuracy. It produces clean and smooth cuts, without leaving any uneven edges, making it ideal for creating high-quality wooden products.
Model: JK-1325
Working size: 4ft×8ft
Rotary: diameter 150mm
Wood carving CNC machine can be used for making intricate wooden molds, furniture, and complex designs for woodworking industries. It has advantages of high-speed, its easy-to-use interface, and the capability to carve various materials make it an excellent investment for enhancing efficiency and productivity in woodworking processes.
Technical parameters of wood carving CNC machine:
NO. | Description | Parameter |
1 | Name | JK-1325 cnc router |
2 | X,Y,Z Working Area | 1300x2500x200mm |
3 | ROTARY | DIAMETER 150MM LENGTH 1000MM |
4 | Table type | T-slot table |
5 | Machine Structure | Welded structure |
6 | X, Y Structure | Helical rack pinions,20mm Hiwin linear square guide rails |
7 | Z Structure | Ball Screw , 20mm Hiwin linear square guide rails |
8 | Max.Speed | 0-15000mm/min |
9 | Max. Working Speed | 0-10000mm/min |
10 | Spindle Power Motor | 6kw water cooled spindle |
11 | Motor and driver | Hybrid servo motors and drivers, Z axis motor with break |
12 | Working Voltage | 380V,3PH |
13 | Command | G Code, *uoo, *mmg, *plt |
14 | Operating System | NK105G2 controlling system |
15 | Dust collector | 3kw with two bags |
15 | Lubrication system | Auto oil lubrication system |
16 | Machine frames | 6mm thick pipes |
17 | Machine Size | 3000*2200*1900mm |
18 | Net Weight | 1200KG |
Features of wood carving CNC machine with rotary axis:
1. It has a four-axis structure that offers a stable and accurate engraving process in different angles and directions.
2. The machine offers a high-speed carving process that is accurate and ensures a smooth finish.

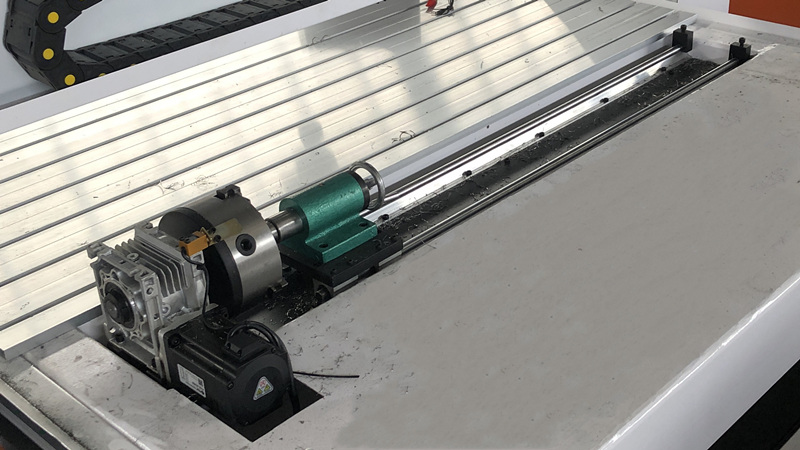

3. It is assembled with a rotary axis which has the capability to carve curves, angles, and irregular shapes with ease.
Wood carving CNC machine with rotary axis can both work on flat wood surface and column wood.
