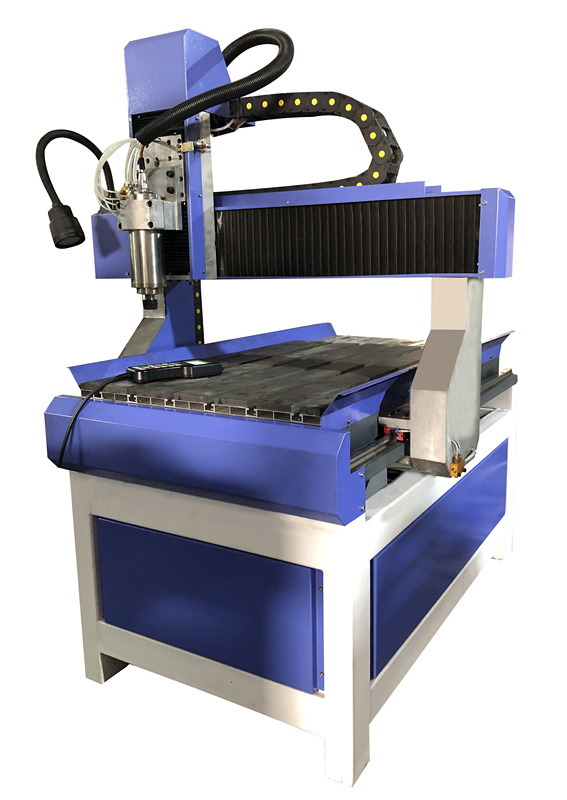

Small Wood CNC Machine
Small wood CNC machine is versatile and cost-effective tool that can provide high precision, efficiency, and adaptability for various industries, materials, and designs.
Model: JK-6090
Spindle: 2.2kw water cooled
Motor: hybrid servo
Control system: DSP
Small wood CNC machine 6090 with working area 2feet by 3feet is suitable for engraving and cutting wood, bamboo, plastic, foams, PVC, plywood, etc. The machine has been widely used in many industries, such as furniture making and decoration industry, advertising and signage industry, crafts and gift industry and so on.
Performance Characteristics of small wood CNC machine:
1. High precision and accuracy.
2. High working efficiency and speed.
3. Easy and convenient operation.
4. Simple and light structure.
5. Low power consumption and noise.
6. Durable and long service life.
Technical parameters of small wood CNC machine:
Model | JK-6090 |
Machine moving type | Gantry moving |
Flat working area(XYZ axis) | 600*900*150mm |
X Y Z rail | Linear square guide rail |
X Y Z transmission | High precision ball screw |
Spindle | 2.2kw 24000RPM water cooled spindle |
Inverter | 2.2KW inverter |
Motor and driver | Hybrid servo |
Lubrication system | Auto lubrication system |
Max. speed | 18m/min |
Max. working speed | 12m/min |
Voltage | AC 220V/AC,50-60hz |
Collets | ER20 3.175-12.7mm |
Repeat reposition accuracy | 0.01mm |
Command | G code |
Control system | NK105G2 |

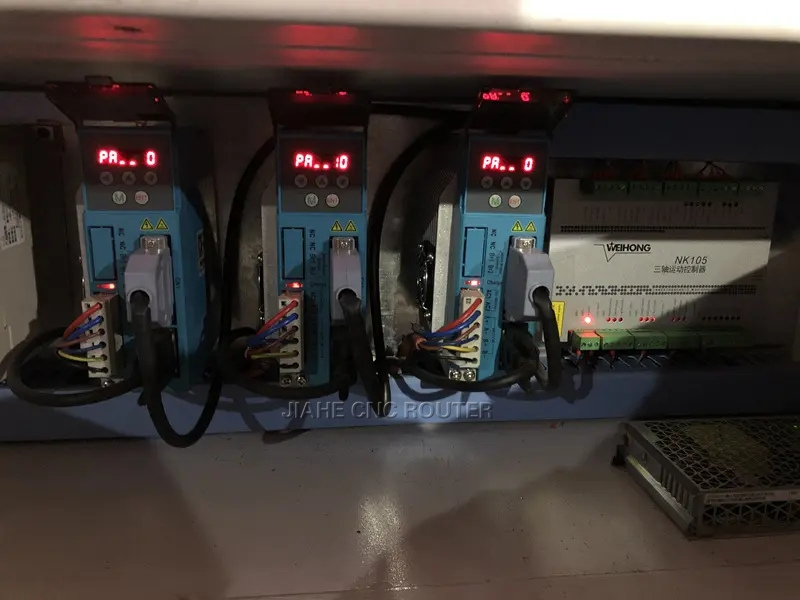

Small wood cnc machine uses hybrid servo motors and drivers with strong power and torque.
Applicable industries of small wood CNC machine:
1. Furniture manufacturing and design.
2. Advertising and signage production and design.
3. Gift and souvenir making and design.
4. Construction and renovation engineering and design.
5. Automotive and aerospace parts manufacturing and design.
