Diy Wood CNC Router
Diy Wood CNC Router is a versatile tool that is widely used in industries like woodworking, advertising, mold making, and art and craft.
Model: JK-6090
Working size: 600*900*150mm
Motor: Stepper motor
Control system: DSP controlling system
Diy Wood CNC Router is a powerful and versatile tool that is perfect for various industries and applications. With its high precision and user-friendly features, it can be used by professionals and hobbyists alike to create unique and personalized creations.
Product Advantages of Diy Wood CNC Router:
- High precision and accuracy for detailed engraving and cutting
- Easy-to-use software for designing and controlling the machine
- Compact and portable design for space-saving and convenient storage
- Suitable for both professionals and DIY enthusiasts, allowing for personalized creations and projects

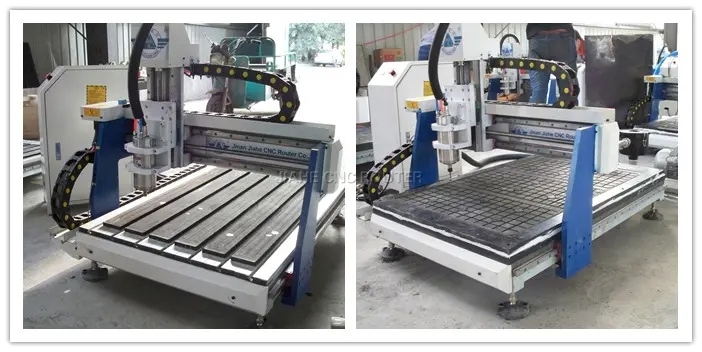

Diy wood CNC router can have two types of working table, T-slot table and vacuum table.
Product Details of Diy Wood CNC Router:
- Machine size: 1025mm(L) x 750mm(W) x 580mm(H)
- Work area: 600mm x 900mm
- Spindle motor: 1.5KW water-cooling spindle
- Control system: DSP control system
- Software: ArtCAM, Type3, Ucancam software
- Voltage: AC 220V/50-60Hz
- Applicable materials: Wood, acrylic, MDF, PVC, leather, etc.
Technical parameters of Diy Wood CNC Router:
Number | Discription | Parameter |
1 | X,Y,Z Working Area | 600x900x200mm |
2 | Table Size | 600X900mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
4 | X,Y,Z repositioning Positioning Accuracy | ±0.01mm |
5 | Table | T-slot/vacuum table(optional) |
6 | Frame | Cast iron |
7 | X, Z Structure | Linear square rails and Ball Screw |
8 | Y Structure | Linear square rails and Ball Screw |
9 | Max. power Consumption | 0.8Kw(without spindle) |
10 | Max.Rapid Travel Rate | 8000mm/min |
11 | Max.Working Speed | 5000mm/min |
12 | Spindle Power Motor | 1.5KW water cooling spindle |
13 | Spindle Speed | 0-18000RPM |
14 | Drive Motors | Stepper system |
15 | Working Voltage | AC220V/50/60Hz |
16 | Command Language | G code |
17 | Operating System | DSP System (Mach3 PC Software) |
18 | Interface | USB |
19 | Flash Memory | 128M(U Disk) |
20 | Collet | ER11 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatability | ARTCAM, ARTCUT,UCANCAM,Type3,etc |
Application Scope of Diy Wood CNC Router:
- Woodworking: Carving and cutting on wooden furniture, decorations, doors, windows, and cabinets.
- Advertising: Engraving and cutting on logos, signs, billboards, and promotional items.
- Mold making: Carving and milling on plastic molds, foam models, and metal molds.
- Art and craft: Engraving and carving on art pieces, gifts, and DIY projects.

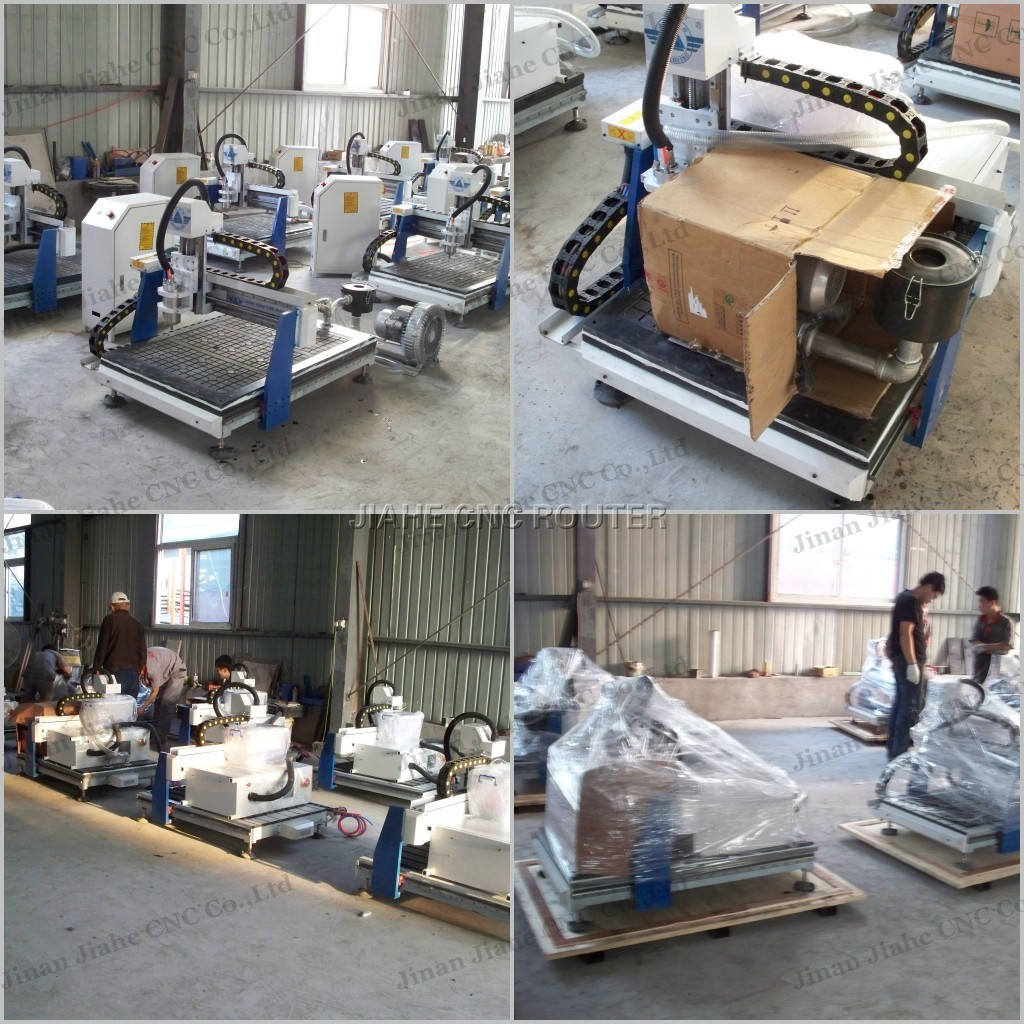

Packing of Diy Wood CNC Router:
