CNC Wood Router 6090
CNC wood router 6090 is a high-performance equipment that can be used to carve intricately detailed designs into various types of wood.
Model: JK-6090
Spindle: 2.2kw water cooled
Motor: hybrid servo
Control system: DSP
CNC wood router 6090 has a wide range of applications and can be used to carve designs into various types of wood, including softwoods like pine and cedar, as well as hardwoods like walnut and cherry. It can also be used to create intricate designs on MDF, acrylic, and other materials.
Features of CNC wood router 6090:
(1). CNC wood router 6090 is designed with a high-precision spindle motor that can spin up to 24,000 RPM. This allows for detailed and precise cuts, even on denser woods like oak and maple.
(2). CNC wood router 6090 has a strong and durable aluminum alloy frame, which reduces vibration during operation and ensures a more accurate cut.
(3). CNC wood router 6090 is equipped with advanced software that allows for easy and intuitive operation, even for novice users. The software allows users to design their own patterns or load pre-existing designs, and then easily upload them to the machine for carving.
Technical parameters of CNC wood router 6090:
Model | JK-6090 |
Machine moving type | Gantry moving |
Flat working area(XYZ axis) | 600*900*150mm |
X Y Z rail | Linear square guide rail |
X Y Z transmission | High precision ball screw |
Spindle | 2.2kw 24000RPM water cooled spindle |
Inverter | 2.2KW inverter |
Motor and driver | Hybrid servo |
Lubrication system | Auto lubrication system |
Max. speed | 18m/min |
Max. working speed | 12m/min |
Voltage | AC 220V/AC,50-60hz |
Collets | ER20 3.175-12.7mm |
Repeat reposition accuracy | 0.01mm |
Command | G code |
Control system | NK105G2 |

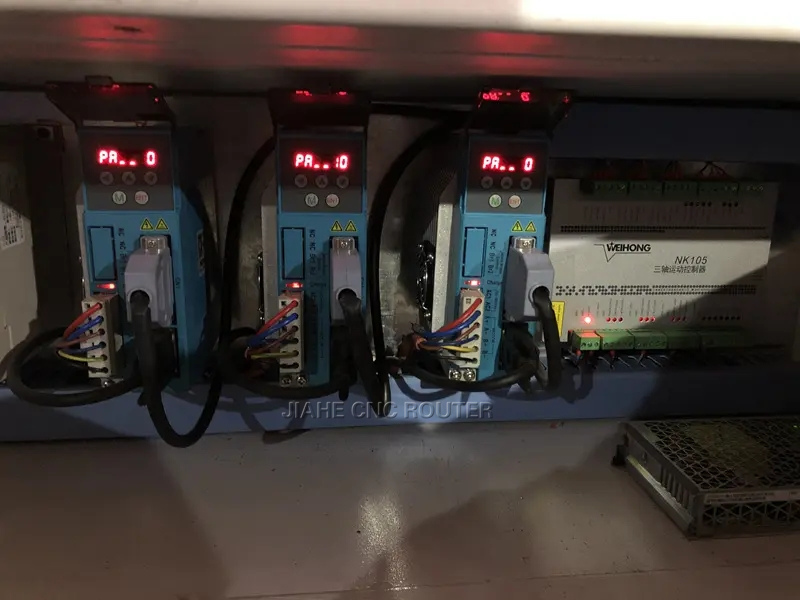

CNC wood router 6090 uses hybrid servo motors and drivers with strong power and torque.
CNC wood router 6090 is a versatile tool that can bring life to your woodworking ideas. It has a compact size, making it perfect for use in small spaces, and is suitable for a wide range of materials, such as wood, plastic, acrylic, and even soft metal.
