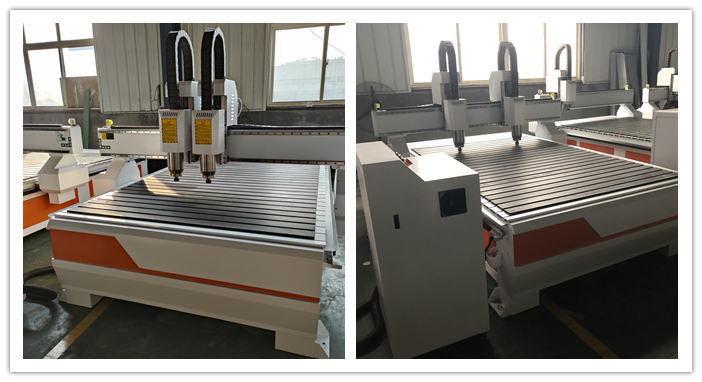

CNC Router Machine For Acrylic Cutting
CNC router machine for acrylic cutting provides a wide range of advantages, including increased precision, speed, versatility, and efficiency. The machine is ideal for creating high-quality acrylic products for various applications and industries.
Model: JK-1525
Working size: 1500×2500×200mm
Spindle: 6kw air cooled×2pcs
Control system: DSP
CNC router machine for acrylic cutting is high-tech equipment used to cut acrylic sheets with high precision, accuracy, and efficiency. The machine comes equipped with advanced software and hardware that allow users to create intricate and complex designs with ease. The machine typically has a working area of 1500mm x 2500mm, which provides ample space to work on large sheets of acrylic.
Features of CNC router machine for acrylic cutting:
1. High-speed cutting and engraving capabilities.
2. User-friendly interface and intuitive software for easy operation.
3. Dust-free work environment for clean and safe working conditions.4. Dual-head design with multiple cutting and engraving options for enhanced productivity.
5. The machine's high-precision hybrid servo motor system ensures smooth operation and precise output.

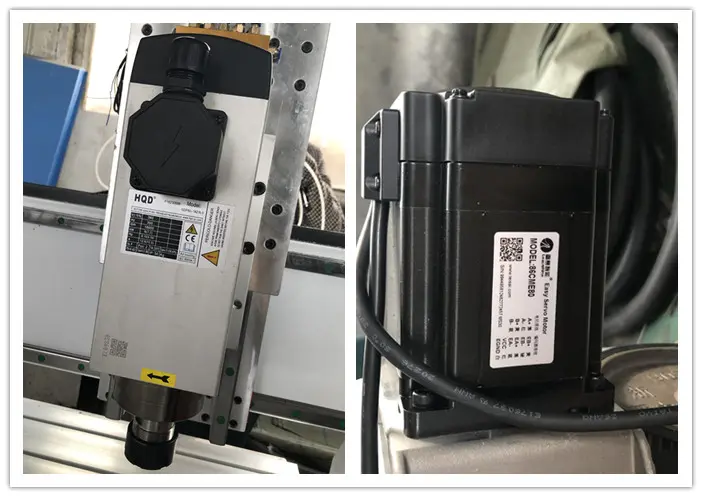

6kw air cooled spindle Leadshine hybrid servo motor
Technical parameters of CNC router machine for acrylic cutting:
NO. | Description | Parameter |
1 | Name | JK-1525 cnc router with double heads |
2 | X,Y,Z Working Area | 1500x2500x200mm |
3 | Table Size | 1500*2500mm |
4 | Table type | T-slot table |
5 | Machine Structure | Welded structure |
6 | X, Y Structure | Helical rack pinions,25mm Hiwin linear square guide rails |
7 | Z Structure | Ball Screw , 25mm Hiwin linear square guide rails |
8 | Max.Speed | 0-15000mm/min |
9 | Max. Working Speed | 0-10000mm/min |
10 | Spindle Power Motor | 6kw air cooled spindle |
11 | Motor and driver | Hybrid servo motors and drivers |
12 | Working Voltage | 380V,3PH |
13 | Command | G Code, *uoo, *mmg, *plt |
14 | Operating System | NK105G2 controlling system |
15 | Lubrication system | Auto oil lubrication system |
16 | Machine Size | 3000*2200*1900mm |
17 | Net Weight | 1200KG |
CNC router machine for acrylic cutting is an ideal tool for a wide range of applications, which includes:
1. Signage industry: the machine is perfect for creating high-quality signs, lettering, and logos.
2. Advertising industry: the machine is widely used to create acrylic displays, promotional materials, and other advertising products.
3. Furniture and interior design: the machine can be used to craft acrylic furniture, wall panels, and other interior design elements.
4. Automotive industry: the machine is used to create custom car parts and accessories.
5. Industrial and manufacturing applications: the machine is used to cut, engrave, and mark a variety of materials, including plastics, metals, and wood.
CNC router machine for acrylic cutting can handle a variety of materials, including:
1. Acrylic sheets of various thicknesses.
2. Wood, plywood, and MDF.
3. Plastics, such as PVC, polycarbonate, and PETG.
