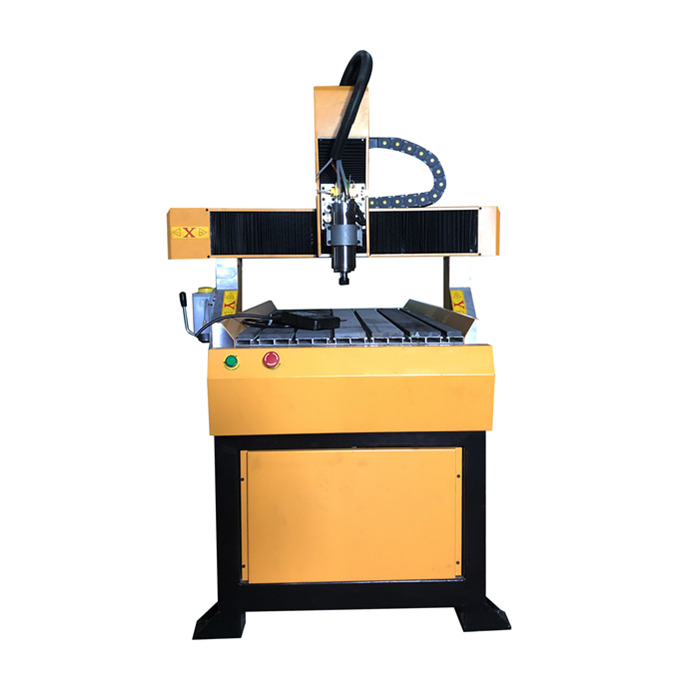

CNC Engraving Machine For Wood

CNC engraving machine for wood is a professional quality woodworking machine that is designed for precision cutting and engraving of wood materials.

Model: JK-6012

Spindle: 2.2kw water cooled

Motor: stepper

Control system: DSP

Contact Now E-Mail Telephone WhatsApp

Product Details

CNC engraving machine for wood is capable of cutting and carving a variety of materials. It is particularly well-suited for use with wood materials, including hardwoods, softwoods, and engineered wood products. It can also be used with other materials such as MDF, plastics, and even metals, making it a versatile tool for a wide range of applications.

Performance characteristics of CNC engraving machine for wood:

(1). It features a powerful motor and a high-speed spindle that can rotate at speeds up to 24,000 RPM, providing high precision and accuracy.

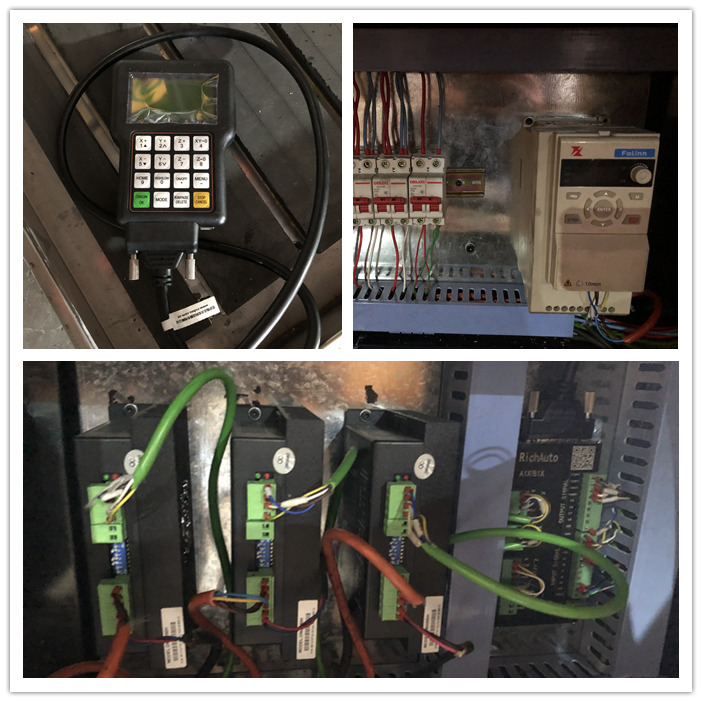

(2). DSP control system makes the machine easy to operate.

CNC Engraving Machine For Wood

Technical parameters of CNC engraving machine for wood:

1	Model	JK-6012
2	X,Y,Z Working Area	600x1200x200mm
3	X,Y,Z Traveling Accuracy	±0.03/200mm
4	X,Y,Z repositioning Accuracy	±0.02mm
5	Table Surface	Aluminum
6	Frame	cast iron
7	X, Y, Z transmission	High precision ball screw
8	X, Y, Z rail	Linear square guide rail
9	Lubrication system	Auto lubrication system
10	Max.Rapid Travel Rate	8000mm/min
11	Max.Working Speed	6000mm/min
12	Spindle Power	2.2Kw water cooling spindle
13	Spindle Speed	0-24000RPM
14	Drive Motors	Stepper
15	Working Voltage	AC220V/50/60Hz
16	Command Language	G code
17	Operating System	DSP System
18	Software Compatibility	ARTCAM
19	Collet	ER20 3.175-12.7mm
20	Packing Size	1650 x 1050 x 950mm
21	Net Weight	500KG
22	Gross Weight	550KG

Application of CNC engraving machine for wood:

The woodworking carving machine 6012 is ideal for use in a variety of industries, including woodworking and furniture making, architectural modeling and design, and sign making.
