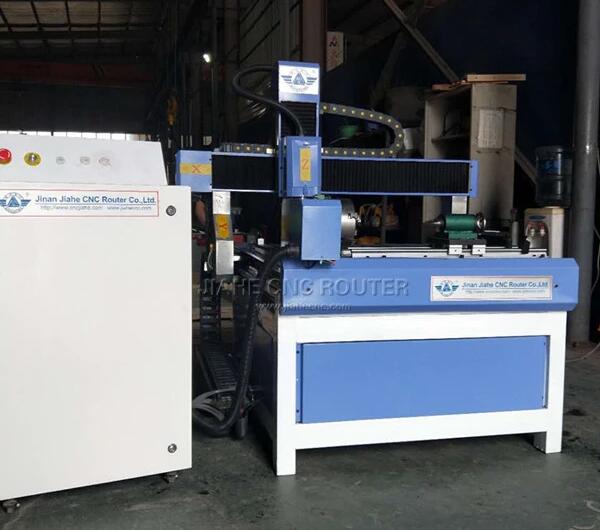

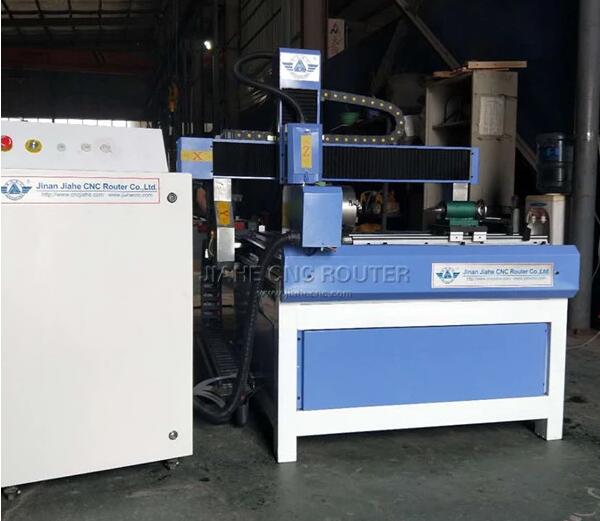

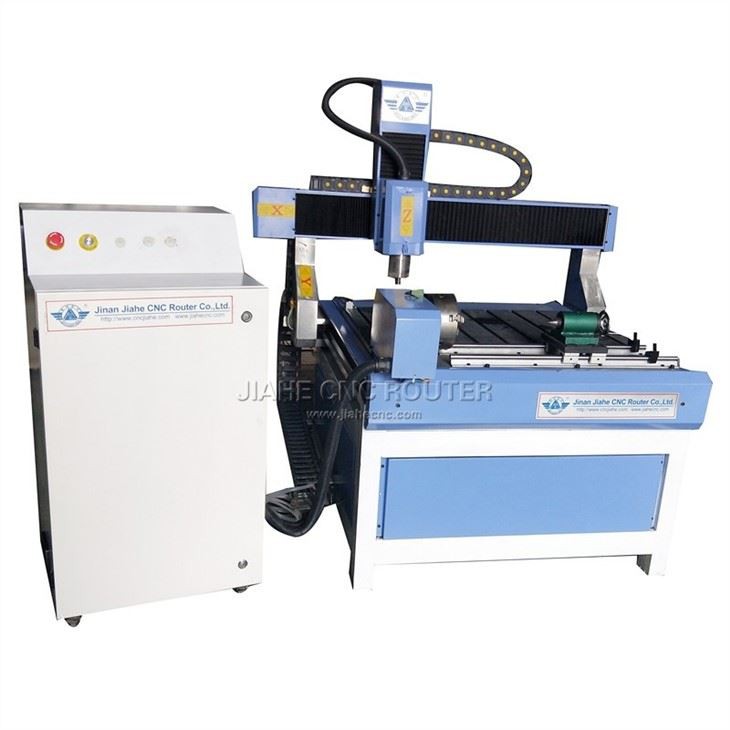

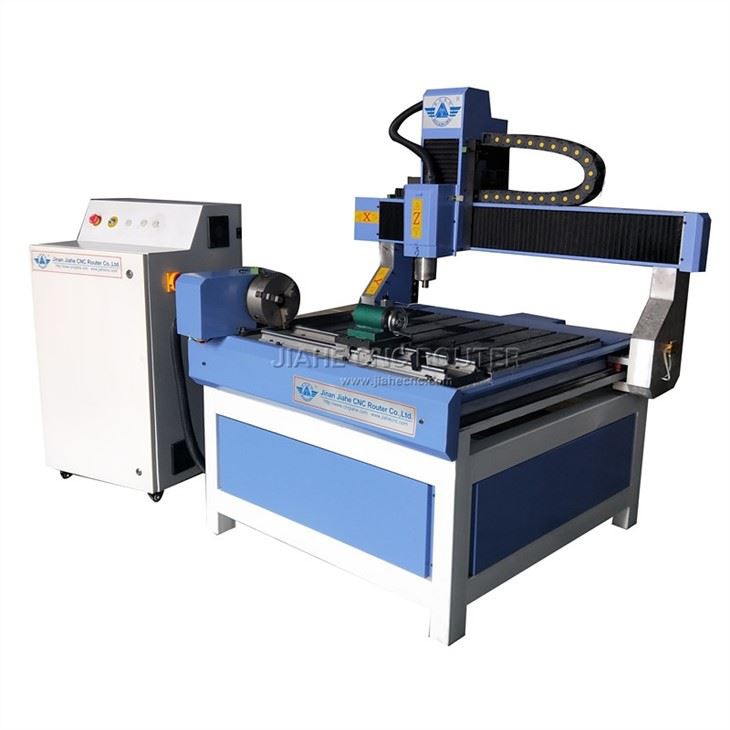

6090 4 Axis CNC Router
6090 4 axis CNC router with a rotary axis is a powerful tool for precision carving and cutting. Its unique features include the ability to rotate the material being worked on, allowing for intricate and complex designs to be created with ease.
Model : JK-6090
Working size : 600*900mm
control system : Ncstudio
Motor : stepper
driver : stepper
Spindle : 2.2kw
6090 4 axis CNC router with a rotary axis can be used with a wide range of materials, including wood, plastic, and even soft metals like aluminum. This makes it a versatile tool that can be used in a variety of different industries, including woodworking, advertising, and signage.
Advantages of 6090 4 axis CNC router:
(1). 6090 4 axis CNC router has several adjustable parameters that allow for customization and optimization of the carving process. These include speed, depth, and rotation angle, giving users complete control over the final product. Its high-speed spindle can also reach speeds of up to 24,000 RPM, allowing for rapid and precise carving.
(2). The machine is very easy to use, with a user-friendly interface that allows even beginners to achieve professional-level results. Its compact size and efficient design make it a great tool for small businesses or home workshops as well.
Technical parameters of 6090 4 axis CNC router:
| Description | Parameter | Remarks |
| X,Y,Z working area | 600*900*200mm | Z optional |
| X,Y,Z Repositioning accuracy | ±0.05mm | |
| X,Y,Z Traveling accuracy | ±0.03/200mm | |
| Max rapid traveling speed | 8000mm/min | |
| Max working speed | 6000mm/min | according to the material |
| Working voltage | 220V/50/60Hz | |
| X,Y,Z Structure | Ball Screw 2510; Taiwan HIWIN guide rail | |
| Machine body | Cast iron | |
| Motor | Stepper system | Servo motor(optional) |
| Drive | Leadshine 860 | |
| Inverter | 2.2kw | |
| Spindle | Water-cooling | |
| Spindle power | 2.2kw | |
| Spindle speed | 6000-24000RPM | |
| Operating system | Ncstudio system | DSP system |
| Table surface | Aluminum T-slot | |
| Fixing method | By clamps | |
| Command language | G code | |
| Computer interface | USB | |
| Collet | ER20 | |
| X,Y Resolution | 0.02mm | |
| Software compatibility | Type3/Artcam/Artcut/Ucancam/JDpaint etc | |
| Running environment | 0~45 centigrade | |
| Relative humidity | 30%~75% | |
| Rotary | Diameter 150mm,processing length 400mm |
6090 4 axis CNC router with a rotary axis is an excellent choice for anyone looking for a reliable and efficient carving solution. Its versatility, precision, and ease of use make it a great tool for hobbyists, small businesses, and professionals alike.

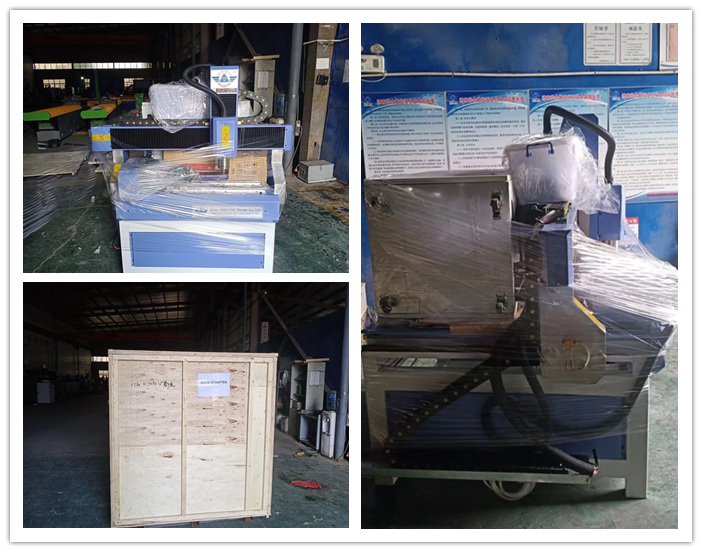

Packing of 6090 4 axis CNC router:
