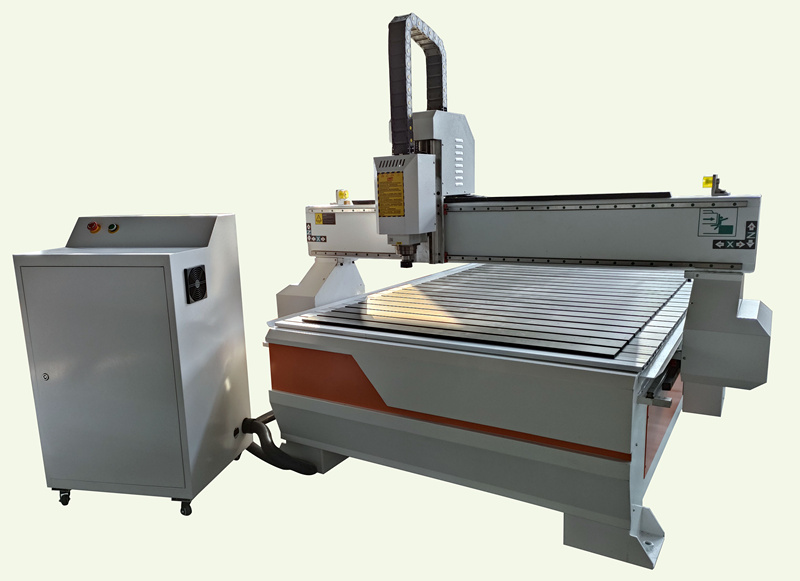

1325 Woodworking CNC Router
1325 woodworking CNC router is an excellent equipment for anyone who needs to work with wood. Its precision, speed, and versatility make it an excellent choice for a wide range of applications, and it is easy to use, even for those who are new to woodworking.
Model: JK-1325
Working size: 1300×2500mm(4ft×8ft)
Spindle: 6kw air cooled
1325 woodworking CNC router is a DSP controlled woodworking machine that uses advanced technology to carve wood into intricate and precise designs. It has a large work area, measuring 1300 x 2500 mm, which makes it ideal for both small and large projects. The machine has a powerful spindle that can rotate at high speeds, allowing for quick and precise cuts.

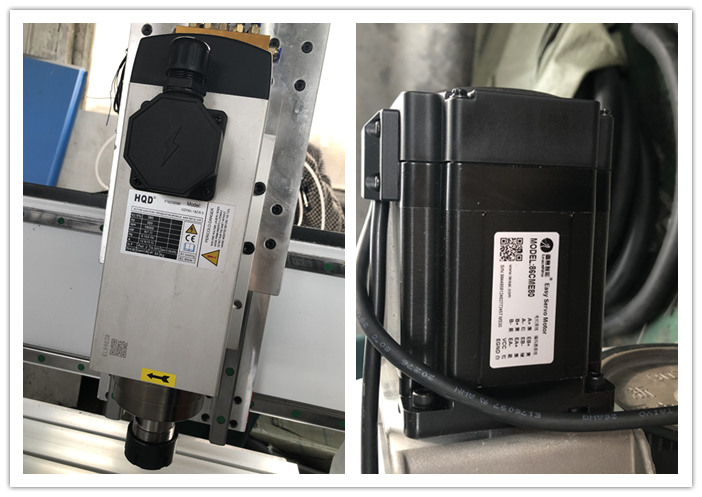

6kw air cooled spindle Leadshine hybrid servo motor
Product Advantages of 1325 woodworking CNC router:
1. High cutting speed: The machine can cut wood quickly and efficiently, which is critical for completing projects on time.
2. High precision: The machine is capable of extremely precise cuts and designs, ensuring that every piece of wood is perfect.
3. Versatility: The machine can work with a variety of materials, including wood, plastic, and metal.
4. Automatic operation: The DSP controlled machine can be programmed to perform a wide range of tasks automatically.
Technical parameters of 1325 woodworking CNC router:
NO. | Description | Parameter |
1 | Name | JK-1325 cnc router |
2 | X,Y,Z Working Area | 1300x2500x200mm |
3 | Table Size | 1300*2500mm |
4 | Table type | T-slot table |
5 | Machine Structure | Welded structure |
6 | X, Y Structure | Helical rack pinions,20mm Hiwin linear square guide rails |
7 | Z Structure | Ball Screw , 20mm Hiwin linear square guide rails |
8 | Max.Speed | 0-15000mm/min |
9 | Max. Working Speed | 0-10000mm/min |
10 | Spindle Power Motor | 6kw air cooled spindle |
11 | Motor and driver | Hybrid servo motors and drivers, Z axis motor with break |
12 | Working Voltage | 380V,3PH |
13 | Command | G Code, *uoo, *mmg, *plt |
14 | Operating System | NK105G2 controlling system |
15 | Lubrication system | Auto oil lubrication system |
16 | Machine frames | 6mm thick pipes |
17 | Machine Size | 3000*2200*1900mm |
18 | Net Weight | 1200KG |
Applications and Materials:
1325 woodworking CNC router is ideal for a wide range of applications, including furniture manufacturing, decorative woodwork, musical instrument manufacturing, and more. It can be used to work with a variety of materials, including hardwood, softwood, plywood, MDF, and more.
