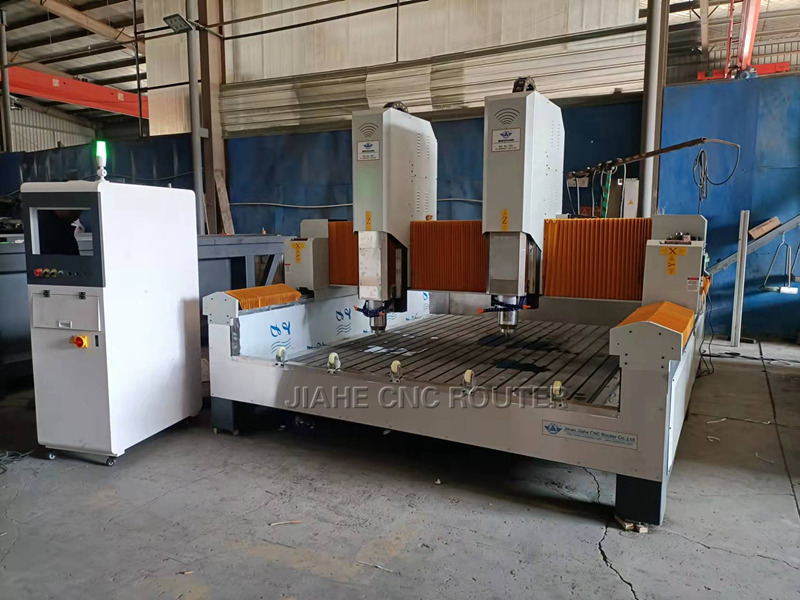

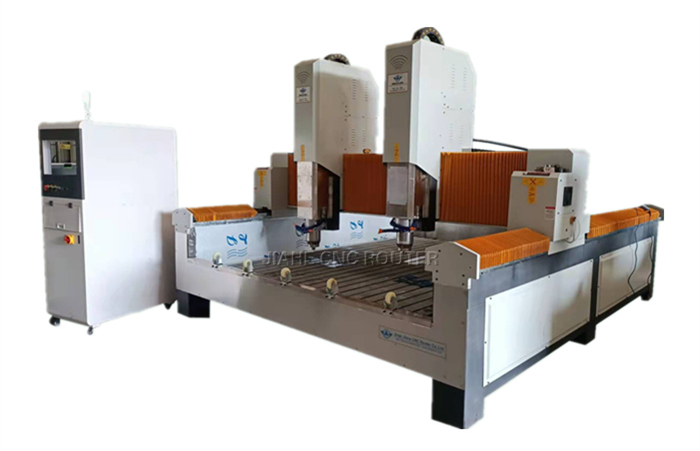

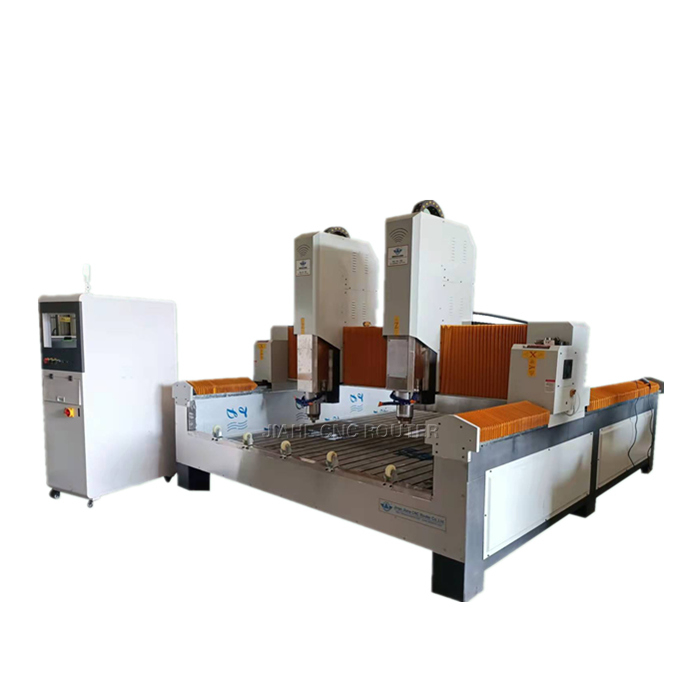

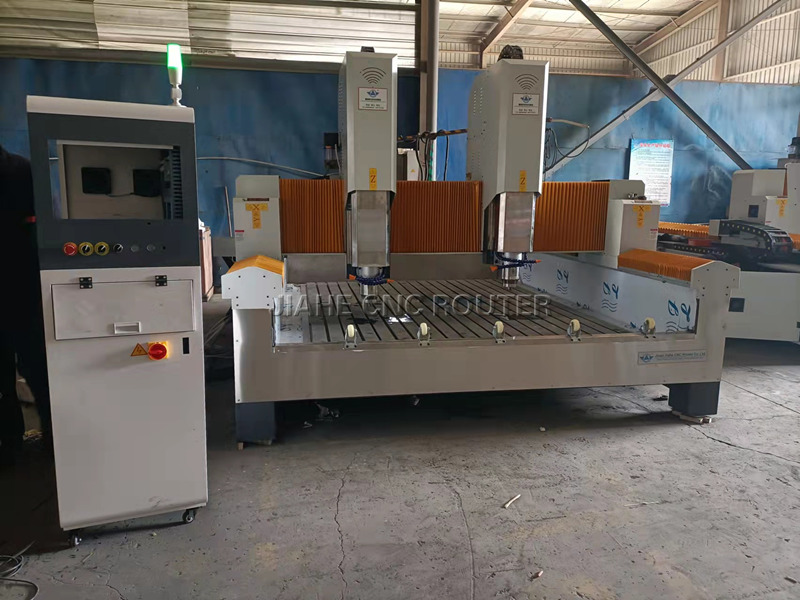

2030 CNC Router For Stone
2030 CNC router for stone comes with two working heads, allowing for
simultaneous carving on stone flat surfaces. This significantly enhances
productivity and reduces carving time.
Model: JK-2030-2
Working size: 2000×3000×450mm
Spindle: 7.5kw*2pcs
Motor: servo motors & drivers
Usage: marble, granite, limestone, and other natural stones, etc
2030 CNC router for stone is compatible with various types of stones, including marble, granite, limestone, and many more. This versatility makes it suitable for a wide range of applications in industries such as construction, architecture, and art.
Advantages of 2030 CNC router for stone:
1. High precision: Equipped with high-quality motors and advanced control systems, 2030 CNC router can execute complex and intricate designs with utmost precision. This allows for the creation of intricate details, seamless curves, and fine lines that are difficult to achieve manually.
2. Sturdy and Durable Construction: 2030 CNC router for stone is built to withstand heavy-duty use. Its robust frame and fully stainless steel water tank guarantee its longevity and reliability, making it a valuable long-term investment for any business.
3. High efficiency: 2030 CNC router for stone has two heads that can work simultaneously, greatly improving productivity and reducing production time.
Technical parameters of 2030 CNC router for stone:
NO. | Description | Parameter |
1 | Name | JK2030-2 double heads stone cnc |
2 | X,Y,Z Working Area | 2000x3000x450mm |
3 | Table Size | 2000*3000mm |
4 | Table type | Aluminum t-slot and PVC table |
5 | Machine Structure | large square tube thickened steel, double-layer platform structure |
6 | X, Y Structure | Helical rack pinions,30mm Hiwin linear square guide rails |
7 | Z Structure | Ball Screw 2510, 30mm Hiwin linear square guide rails |
8 | Water bed | 1.2mm ss stray |
9 | Max.Speed | 0-20000mm/min |
10 | Max. Working Speed | 0-10000mm/min |
11 | Spindle Power Motor | 7.5kw water cooled spindle*2pcs |
12 | Spindle Speed | 0-24000RPM |
13 | Motor and driver | China servo motors 1.5kw and drivers, z axis break motor |
14 | Working Voltage | 380V,3PH |
15 | Command | G Code, *uoo, *mmg, *plt |
16 | Operating System | NK105G3 controlling system |
17 | Lubrication system | Automatic oil lubrication system |
18 | Tools size | 3.175mm-16mm |
19 | Collet | ER32 |
20 | Software | Artcam software |
21 | Running Circumstance | Temperature: 0℃～45℃ |
23 | Packing Size | 4200*2250*2230mm |
24 | Net Weight | 2200KG |
25 | Gross Weight | 2300KG |
Application of 2030 CNC router for stone:
Construction Industry: In the construction industry, 2030 CNC router is used for carving intricate designs on stone materials to enhance the aesthetic appeal of buildings.The machine is suitable for a wide range of stone materials. Whether it is marble, granite, limestone, or other natural stones, the machine is capable of working on various types of materials, providing versatility to users. This versatility extends to the size of the stones as well, with the machines designed to handle both small and large
stone pieces.
Tombstone Industry: 2030 CNC router for stone is extensively used in the tombstone industry for carving personalized designs, names, and dates on gravestones. The automated dual-head mechanism allows for quicker production of tombstones with high precision and quality. This ensures that customers' emotional sentiments and artistic preferences are accurately reflected in the final product.
Interior Design: Interior designers often utilize 2030 CNC router to incorporate stone accents and embellishments into interior spaces. From customized floor medallions and wall panels to carved fireplace mantels and intricate furniture pieces, the machine enables designers to add a touch of sophistication and uniqueness to their projects.
